1.5 Gazebo Simulation

What You'll Learn

Add realistic 3D visualization to your drone simulations:

  • What Gazebo is and why we use it
  • Install Gazebo Harmonic
  • Install ArduPilot Gazebo plugin
  • Launch SITL with Gazebo visualization
  • Understand Gazebo interface
  • Control drone with 3D feedback
  • Verify physics simulation works

Time: 30-60 minutes

Prerequisites

Before starting, you must have completed:

What is Gazebo?

Gazebo = Advanced 3D robot simulator

It provides:

  • Realistic physics — Gravity, inertia, collisions
  • 3D visualization — See your drone in realistic environment
  • Sensor simulation — Camera, GPS, IMU, lidar
  • Environmental factors — Wind, lighting, terrain

Why add Gazebo to SITL?

SITL alone:

  • No visual feedback (just text/map)
  • No realistic physics
  • No sensor simulation

SITL + Gazebo:

  • See drone in 3D world
  • Realistic flight physics
  • Test sensors before real hardware
  • Better understanding of behavior

Later (Phase 2): We'll add ROS2 sensors in Gazebo.

Install Gazebo Harmonic

Why Gazebo Harmonic?

Gazebo Harmonic (released 2024) is the recommended version:

  • Latest LTS (Long Term Support) release
  • Best Ubuntu 22.04 support
  • Officially supported by ArduPilot
  • Active development and updates

Official documentation: https://gazebosim.org/docs/harmonic/install_ubuntu

Install Required Tools

First, ensure required tools are installed:

sudo apt update
sudo apt install curl lsb-release gnupg -y

What these are:

  • curl — Download files from internet
  • lsb-release — Detect Ubuntu version
  • gnupg — Verify package signatures

Add Gazebo Repository

Add Gazebo GPG key:

sudo curl https://packages.osrfoundation.org/gazebo.gpg --output /usr/share/keyrings/pkgs-osrf-archive-keyring.gpg

Add repository to sources list:

echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/pkgs-osrf-archive-keyring.gpg] https://packages.osrfoundation.org/gazebo/ubuntu-stable $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/gazebo-stable.list > /dev/null

What this does: Adds official Gazebo Harmonic repository to your system.

Update Package List

sudo apt update

Install Gazebo Harmonic

sudo apt install gz-harmonic -y

What this installs: Complete Gazebo Harmonic suite.

This takes: 5-10 minutes (downloads ~1-2GB).

Expected output:

Reading package lists... Done
Building dependency tree... Done
...
Setting up gz-harmonic...

✅ Success: Installation completes without errors

Verify Gazebo Installation

gz sim --version

Expected output:

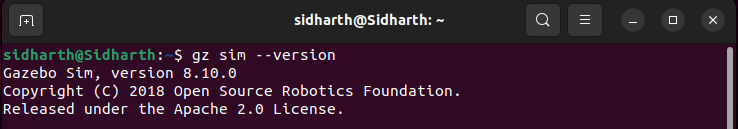

Verify Gazebo Installation

Gazebo Sim, version 8.x.x

✅ Success: Shows Gazebo Sim version 8.x (Harmonic)

Test Gazebo Launch

gz sim -v4 shapes.sdf

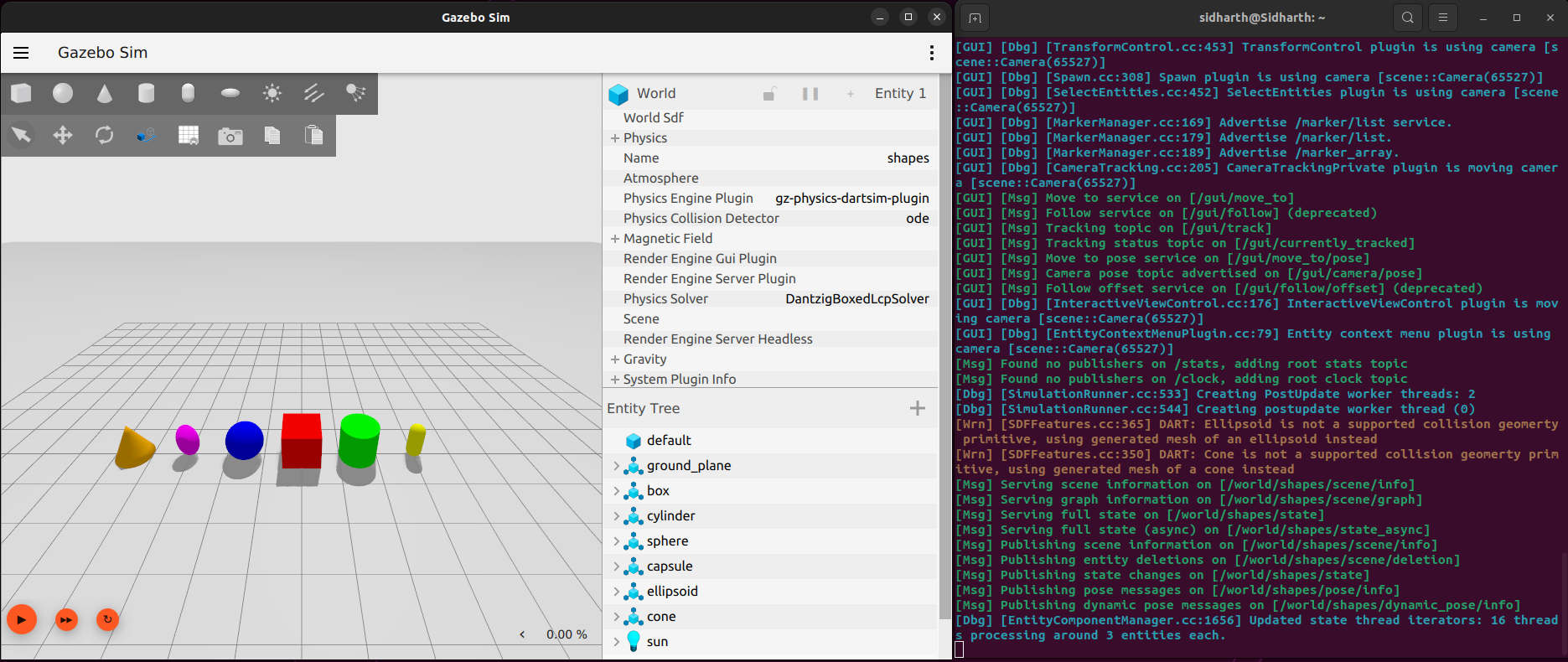

Start Gazebo First

What happens:

  • Gazebo window opens
  • Shows world with various 3D shapes
  • May take 10-20 seconds on first launch

If window opens: ✅ Gazebo installed correctly

Close Gazebo: File → Exit (or Ctrl+C in terminal)

Install ArduPilot Gazebo Plugin

What is the Plugin?

The ArduPilot Gazebo plugin connects:

  • ArduPilot SITL ↔ Gazebo simulator
  • Sends motor commands from ArduPilot to Gazebo
  • Sends sensor data from Gazebo to ArduPilot

Without plugin: SITL and Gazebo can't communicate.

How the Integration Works

Gazebo and SITL Integration Architecture

Official repository: https://github.com/ArduPilot/ardupilot_gazebo

Install Dependencies

ArduPilot Gazebo plugin requires these packages:

sudo apt update
sudo apt install libgz-sim8-dev rapidjson-dev -y

sudo apt install libopencv-dev libgstreamer1.0-dev libgstreamer-plugins-base1.0-dev gstreamer1.0-plugins-bad gstreamer1.0-libav gstreamer1.0-gl -y

What these are:

  • libgz-sim8-dev — Gazebo Harmonic development libraries
  • rapidjson-dev — JSON parsing library (for communication)
  • libopencv-dev — Computer vision library (required for camera sensors)
  • libgstreamer* — Video streaming libraries (required for plugin compilation)

This takes: 5-10 minutes

Expected output:

Reading package lists... Done
Building dependency tree... Done
...
Setting up libopencv-dev...
Setting up libgstreamer1.0-dev...
...

✅ Success: All packages installed without errors

Clone ArduPilot Gazebo Plugin

cd ~/simtofly_ws
git clone https://github.com/ArduPilot/ardupilot_gazebo.git

This takes: 1-2 minutes.

Expected output:

Cloning into 'ardupilot_gazebo'...
remote: Enumerating objects: ...
...
Resolving deltas: 100% (xxx/xxx), done.

✅ Success: Repository cloned

Build the Plugin

cd ~/simtofly_ws/ardupilot_gazebo
mkdir build && cd build
cmake .. -DCMAKE_BUILD_TYPE=RelWithDebInfo
make -j4

Command breakdown:

  • mkdir build && cd build — Create build directory
  • cmake .. — Configure build system
  • -DCMAKE_BUILD_TYPE=RelWithDebInfo — Optimized build with debug info
  • make -j4 — Build using 4 CPU cores

This takes: 5-10 minutes.

Expected output:

-- The C compiler identification is GNU 11.x.x
-- The CXX compiler identification is GNU 11.x.x
...
-- Compiling against Gazebo Harmonic
-- RapidJSON found. Headers: /usr/include
-- OpenCV found
...
[ 25%] Building CXX object ...
[ 50%] Building CXX object ...
[ 75%] Building CXX object ...
[100%] Built target ArduPilotPlugin

✅ Success: Shows "[100%] Built target ArduPilotPlugin"

Configure Environment Variables

Add Plugin to Gazebo's Search Path

Gazebo needs to know where to find the plugin and models.

Add environment variables:

echo 'export GZ_SIM_SYSTEM_PLUGIN_PATH=$HOME/simtofly_ws/ardupilot_gazebo/build:${GZ_SIM_SYSTEM_PLUGIN_PATH}' >> ~/.bashrc

echo 'export GZ_SIM_RESOURCE_PATH=$HOME/simtofly_ws/ardupilot_gazebo/models:$HOME/simtofly_ws/ardupilot_gazebo/worlds:${GZ_SIM_RESOURCE_PATH}' >> ~/.bashrc

What these do:

  • First line: Tells Gazebo where to find the ArduPilot plugin
  • Second line: Tells Gazebo where to find drone models and simulation worlds

Apply Changes

source ~/.bashrc

Verify Environment Variables

echo $GZ_SIM_SYSTEM_PLUGIN_PATH
echo $GZ_SIM_RESOURCE_PATH

Expected output: Should show paths to your plugin and models directories.

✅ Success: Paths displayed correctly

Launch SITL with Gazebo

Start Gazebo First

Open Terminal 1:

gz sim -v4 -r iris_runway.sdf

Command breakdown:

  • gz sim — Launch Gazebo simulator
  • -v4 — Verbose output (helpful for troubleshooting)
  • -r — Run simulation immediately (not paused)
  • iris_runway.sdf — Quadcopter on runway world

This takes: 10-20 seconds to load.

Expected result:

  • Gazebo window opens
  • Shows runway environment
  • Drone (iris quadcopter) visible on runway

✅ Success: See drone in Gazebo world

Start SITL

Open Terminal 2 (keep Gazebo running in Terminal 1):

cd ~/simtofly_ws/ardupilot/ArduCopter
sim_vehicle.py -v ArduCopter -f gazebo-iris --model JSON --map --console

Command breakdown: - -v ArduCopter — Vehicle type (multirotor) - -f gazebo-iris — Use Gazebo with iris model - --model JSON — Use JSON protocol for communication - --map — Open map window - --console — Open console window

This takes: 10-15 seconds.

Expected output:

Starting SITL...
Waiting for JSON sensor data...
Received sensor data from Gazebo
...
APM: ArduCopter V4.5.7 (...)
...
STABILIZE>

✅ Success: Shows "Received sensor data from Gazebo" and STABILIZE> prompt

Verify Connection

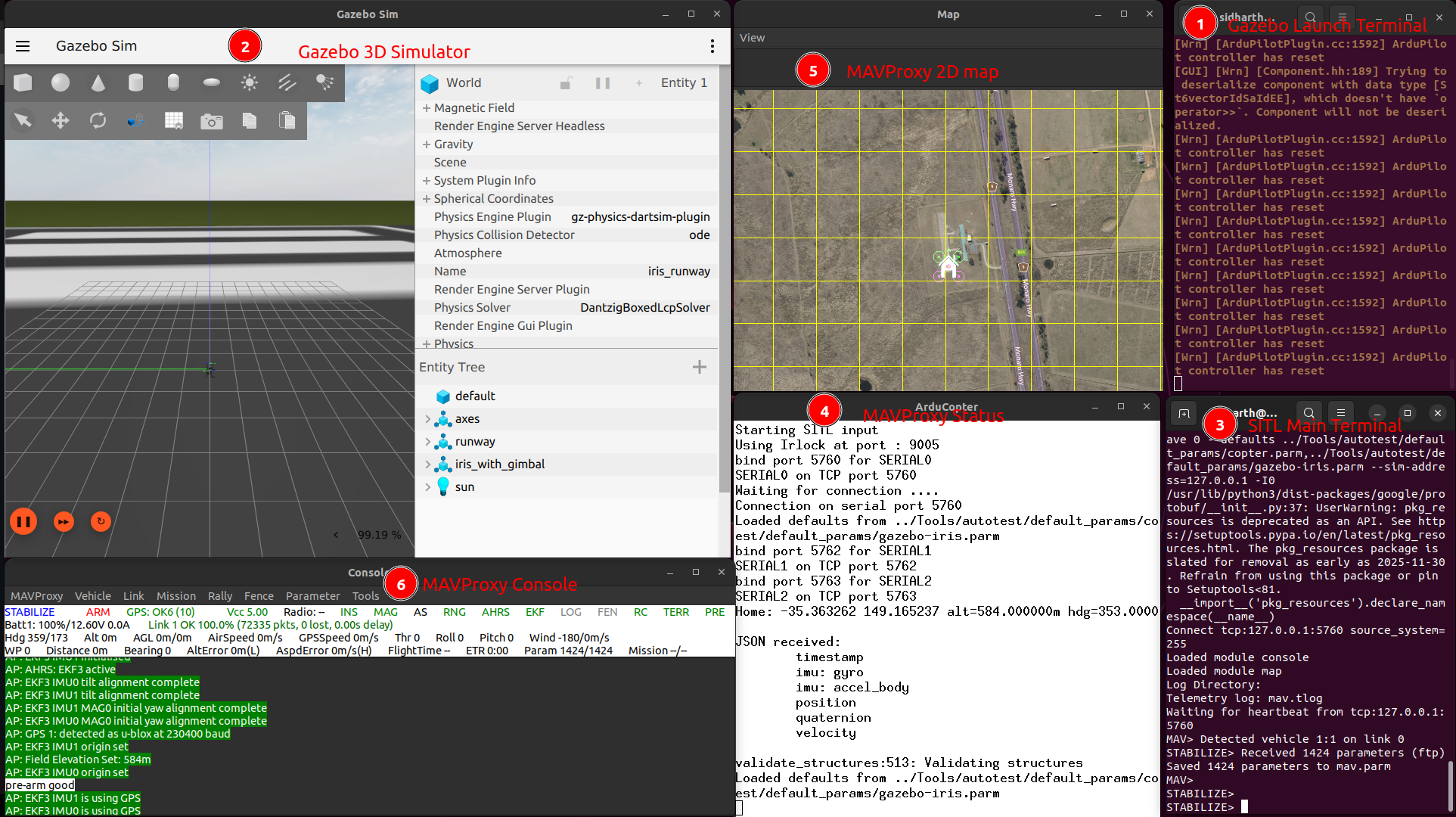

Launch SITL with Gazebo

In Gazebo window: - Drone should be sitting on runway - Propellers visible

In SITL console window: - Shows flight mode (STABILIZE) - GPS status should be good

In map window: - Drone position displayed

✅ Success: All windows show drone data

Here's a quick reference of what each window does:

Window # Name Purpose
1 Gazebo Launch Terminal Gazebo output logs and messages
2 Gazebo 3D Simulator 3D visualization of drone and environment
3 SITL Main Terminal Enter MAVProxy commands (arm, takeoff, etc.)
4 MAVProxy Status System messages, errors, and status updates
5 MAVProxy 2D Map Top-down view of drone position and waypoints
6 MAVProxy Console Real-time telemetry (altitude, speed, battery, GPS)

Note: Windows 1-2 are the Gazebo simulator running separately, while Windows 3-6 all are part of MAVProxy/SITL.

Test Flight in Gazebo

Arm and Takeoff

In SITL terminal (Terminal 2):

mode GUIDED

arm throttle

takeoff 10

Watch in Gazebo: - Propellers start spinning - Drone lifts off ground - Climbs to 10 meters - Physics looks realistic (smooth acceleration)

This takes: 10-20 seconds to reach altitude.

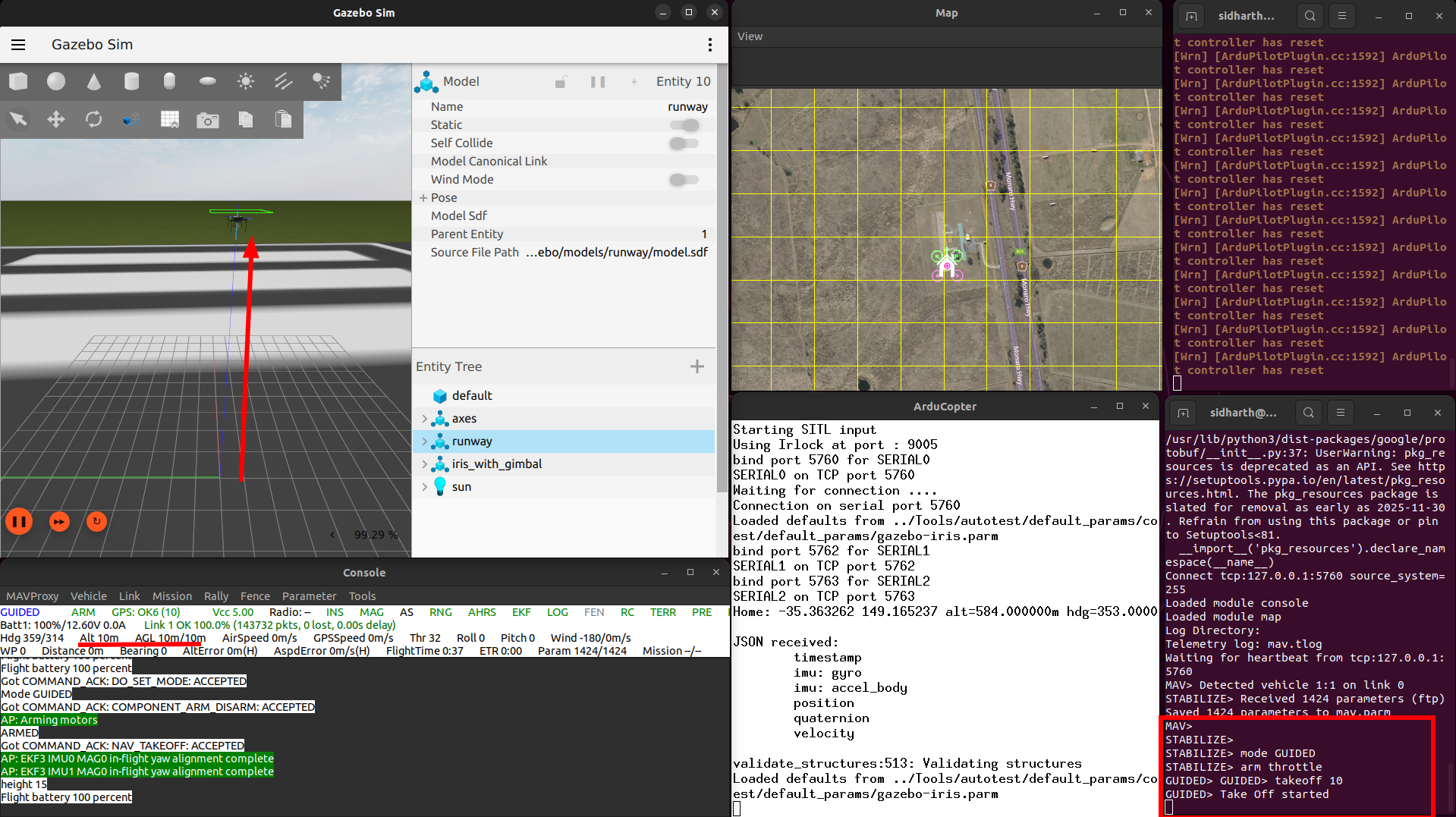

Test Flight in Gazebo

✅ Success: Drone flies in Gazebo, hovers at 10m

Using MAVProxy map window (easiest method):

  1. In the MAVProxy map window, right-click where you want drone to go
  2. Select Fly to
  3. Drone automatically flies to position and holds

Watch in Gazebo:

  • Drone tilts in flight direction
  • Moves smoothly to new position
  • Realistic flight physics
  • Automatically holds position when reached

Try clicking different locations on the map to see the drone respond!

Return to Launch:

mode RTL

Drone automatically returns to takeoff position.

OR

Land

land

Watch in Gazebo: - Drone descends smoothly - Touches down on runway - Propellers stop spinning - Automatically disarms

✅ Success: Complete flight in 3D simulation

Understanding Gazebo Interface

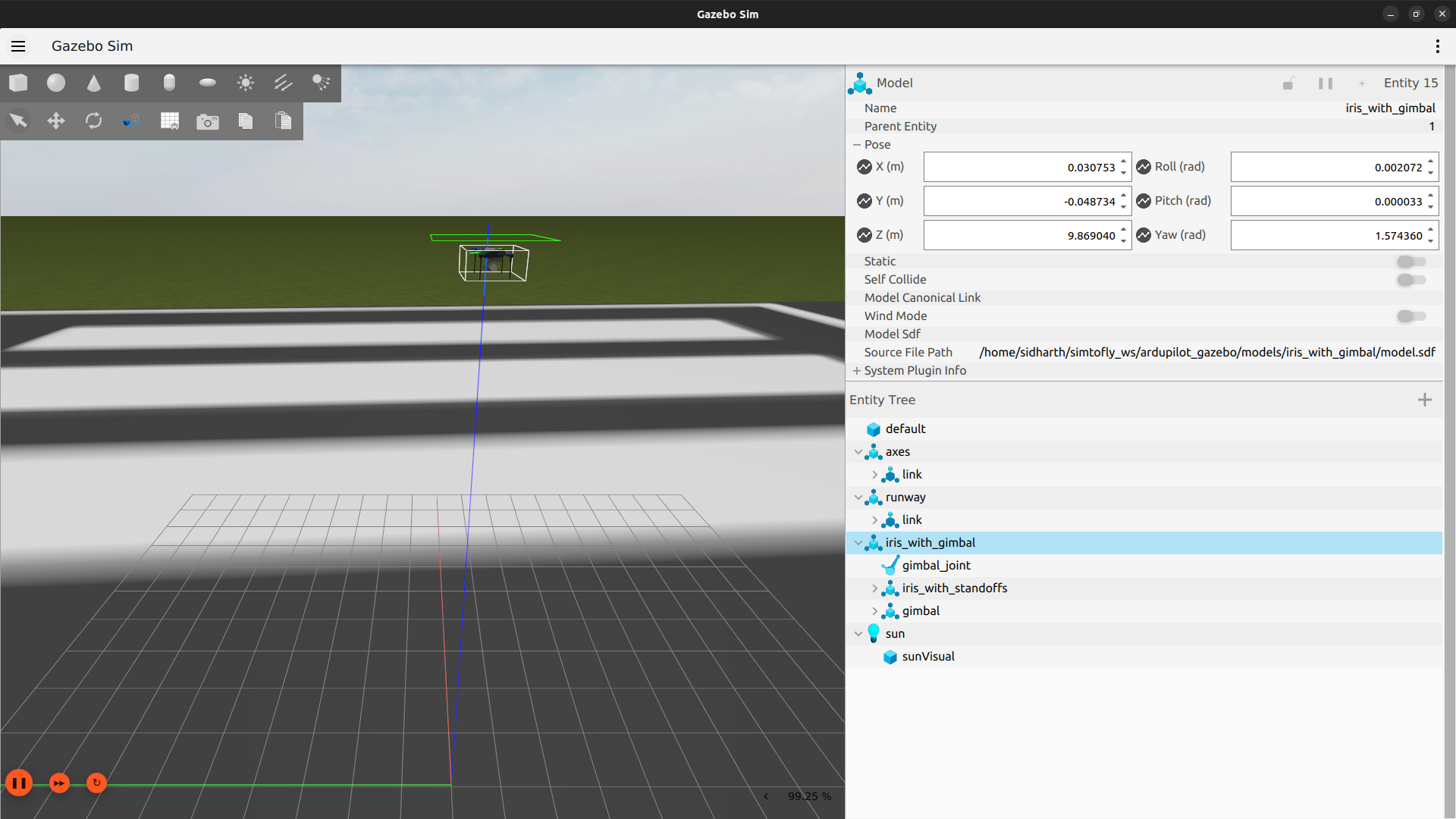

Gazebo Interface

Main Window Elements

Top Left Toolbar:

  • Shape and transform tools
  • Screenshot

Right Panel:

  • Top: Model properties (pose, settings)
  • Bottom: Entity Tree (list of objects)
  • Select objects to inspect and modify

Bottom Left:

  • Play/Pause button
  • Real-time factor (simulation speed)

Center:

  • 3D visualization
  • Main view of drone and environment

Camera Controls

Use mouse to navigate the view:

  • Left-drag: Rotate view around point
  • Middle-drag: Pan view (move camera position)
  • Right-drag: Zoom in/out
  • Scroll wheel: Zoom in/out
  • Shift + Left-drag: Look around (first-person style)

Useful View Controls

  1. Right-click on iris_with_gimbal in Entity Tree (right panel, bottom section)

  2. Many options like Move To, Follow Options (Follow, Free Look, Look At), Track, Remove, Copy, Paste, View ( Center of Mass, Collisions, Inertia, Joints, Frams, Transparent, Wireframe)

Different Gazebo Worlds

Available Worlds

The plugin includes several environments:

iris_runway.sdf — Drone on runway (default, fast loading)
iris_maze.sdf — Indoor maze environment
iris_warehouse.sdf — Indoor warehouse with obstacles

Launch Different World

Example: Launch in warehouse:

Terminal 1:

gz sim -v4 -r iris_warehouse.sdf

Note: The warehouse world may take 3-5 minutes to load on first launch. It downloads 3D models from the internet, so ensure you have a stable internet connection. The Gazebo window may appear frozen during download — this is normal. Subsequent launches will be much faster as models are cached locally.

Terminal 2:

cd ~/simtofly_ws/ardupilot/ArduCopter
sim_vehicle.py -v ArduCopter -f gazebo-iris --model JSON --map --console

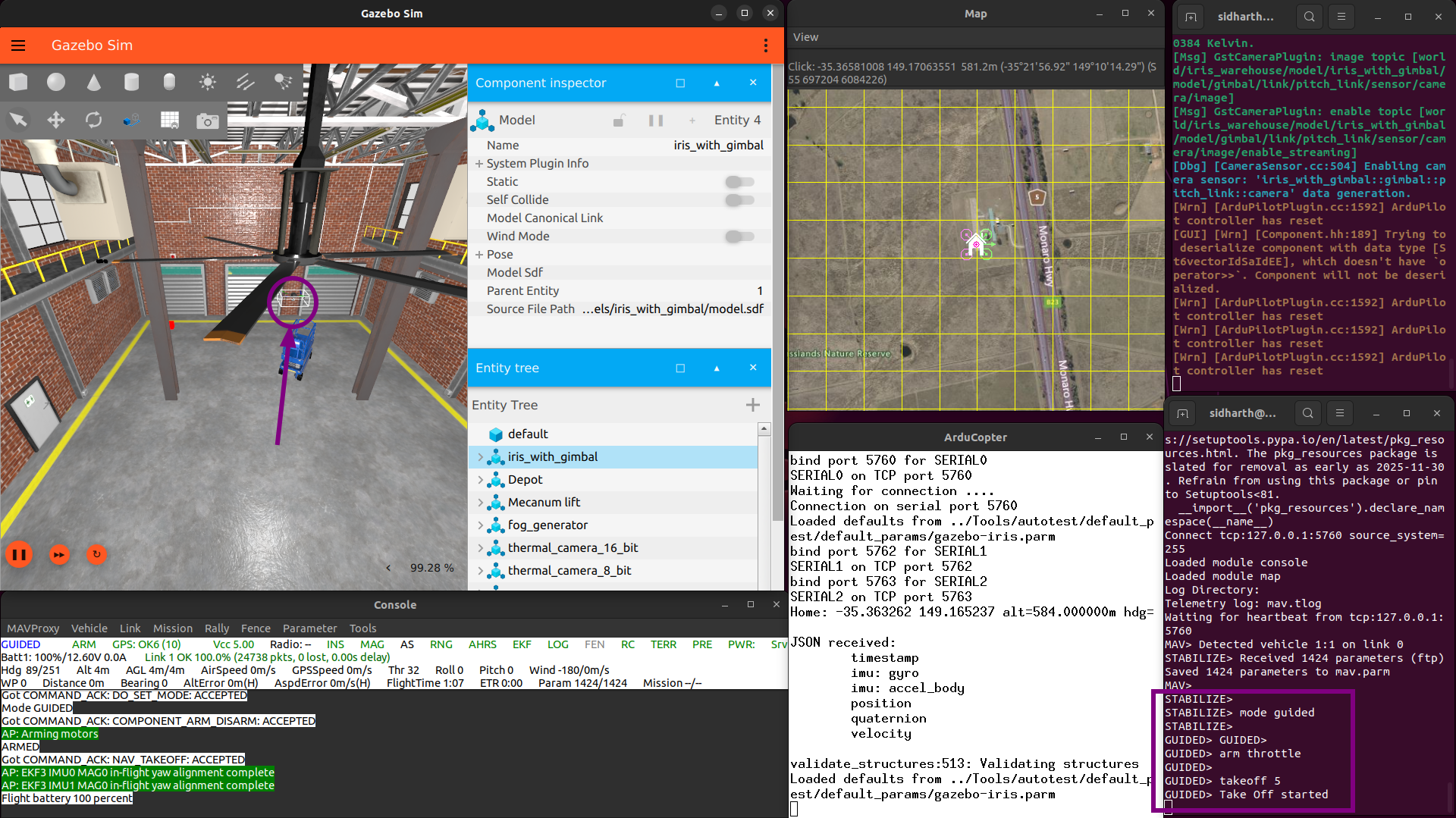

Launch in warehouse

Try different worlds to test various flight scenarios!

Verification Checklist

Before moving to next section, verify:

  • Gazebo Harmonic installed (version 8.x)
  • ArduPilot Gazebo plugin built successfully
  • Environment variables set correctly
  • Gazebo launches with drone model
  • SITL connects to Gazebo (sees sensor data)
  • Can arm and takeoff in Gazebo
  • Drone physics looks realistic
  • Can navigate and land successfully
  • Understand Gazebo interface controls

All checked? You have complete 3D simulation!

What You Accomplished

  • ✅ Installed Gazebo Harmonic simulator
  • ✅ Installed all required dependencies
  • ✅ Built ArduPilot Gazebo plugin from source
  • ✅ Configured environment for plugin
  • ✅ Connected SITL to Gazebo
  • ✅ Launched drone in 3D environment
  • ✅ Performed flight with realistic physics
  • ✅ Learned Gazebo interface navigation
  • ✅ Tested different simulation worlds

Next Steps

Continue to 1.6 First Autonomous Mission where we'll:

  • Create waypoint mission file
  • Load mission into SITL
  • Execute autonomous flight in Gazebo
  • Analyze flight logs
  • Complete Phase 1 successfully

Common Questions

Q: Gazebo Garden vs Gazebo Harmonic?

A: Both work with ArduPilot:

  • Harmonic (recommended) — Latest LTS release, best support
  • Garden — Older release, still supported

Stick with Harmonic unless you have specific compatibility needs.

Q: Why build plugin from source instead of using packages?

A: The ArduPilot Gazebo plugin isn't available in Ubuntu repositories. Building from source ensures you get the latest version with all features and bug fixes.

Q: Gazebo is very slow or laggy

A: Solutions: - Close other applications - Reduce Gazebo quality: Edit → Physics → Real time factor - Use simpler worlds (iris_runway instead of warehouse) - Allocate more RAM to VM (if using VM) - Lower graphics settings - Consider native Ubuntu instead of VM for better performance

Q: Can I use Gazebo with PX4 instead of ArduPilot?

A: Yes! Gazebo supports multiple autopilots. This tutorial focuses on ArduPilot, but Gazebo works with PX4, Betaflight, and others.

Q: How do I add custom models to Gazebo?

A: Advanced topic — Place models in ~/simtofly_ws/ardupilot_gazebo/models/ and they'll be available. We'll cover custom models in advanced tutorials.

Q: The warehouse world won't load

A: This world downloads models from internet: - Ensure stable internet connection - First load takes 3-5 minutes (downloading models) - Gazebo window may freeze — wait patiently - Check terminal for download progress - Cached after first load (faster next time)

Troubleshooting Plugin Build

Error: "Could not find OpenCV" ⚠️

Full error message:

CMake Error at CMakeLists.txt:86 (find_package):
  By not providing "FindOpenCV.cmake" in CMAKE_MODULE_PATH this project has
  asked CMake to find a package configuration file provided by "OpenCV", but
  CMake did not find one.

Cause: Missing OpenCV and GStreamer dependencies.

Solution:

sudo apt update
sudo apt install libopencv-dev libgstreamer1.0-dev libgstreamer-plugins-base1.0-dev gstreamer1.0-plugins-bad gstreamer1.0-libav gstreamer1.0-gl -y

Then clean and rebuild:

cd ~/simtofly_ws/ardupilot_gazebo/build
rm -rf *
cmake .. -DCMAKE_BUILD_TYPE=RelWithDebInfo
make -j4

Error: "Could not find gz-sim8" ⚠️

Cause: Gazebo Harmonic not installed or dependencies missing.

Solution:

  1. Verify Gazebo installed:
gz sim --version

Should show: Gazebo Sim, version 8.x.x

If not, Gazebo installation failed. Repeat Gazebo installation steps above.

  1. Install missing dependencies:

    sudo apt update
sudo apt install libgz-sim8-dev rapidjson-dev -y

  2. Clean and rebuild:

    cd ~/simtofly_ws/ardupilot_gazebo/build
rm -rf *
cmake .. -DCMAKE_BUILD_TYPE=RelWithDebInfo
make -j4

Error: Wrong Gazebo Version ⚠️

Check installed version:

dpkg -l | grep gz-sim

Should show: gz-sim8 (Harmonic)

If shows gz-sim7 (Garden):

You installed Garden instead of Harmonic. Uninstall and reinstall:

sudo apt remove gz-garden -y
sudo apt autoremove -y
sudo apt install gz-harmonic -y

Then retry plugin build from "Install Dependencies" section.

Build is Very Slow ⚠️

Cause: Limited CPU cores or VM with low resources.

Solutions:

  • Be patient (first build takes 5-10 minutes)
  • Use fewer build threads: make -j2 instead of make -j4
  • Close other applications
  • Allocate more RAM/CPU to VM if applicable
  • Subsequent builds will be much faster

Additional Troubleshooting

Gazebo window doesn't open

Cause: Missing graphics libraries or GPU drivers

Solution:

sudo apt install libgl1-mesa-glx libglu1-mesa -y

Restart computer, try again.

"Failed to load plugin" in Gazebo

Cause: Plugin not in Gazebo's search path or environment variables not set

Solution:

  1. Verify environment variable:
    echo $GZ_SIM_SYSTEM_PLUGIN_PATH

Should show path to your plugin build directory.

  1. If empty, re-add:

    echo 'export GZ_SIM_SYSTEM_PLUGIN_PATH=$HOME/simtofly_ws/ardupilot_gazebo/build:${GZ_SIM_SYSTEM_PLUGIN_PATH}' >> ~/.bashrc
source ~/.bashrc

  2. Restart Gazebo

SITL doesn't connect to Gazebo

Cause: Gazebo not running, or wrong model specified

Solution:

  1. Start Gazebo first (Terminal 1) and wait for world to fully load
  2. Then start SITL (Terminal 2)
  3. Verify -f gazebo-iris flag is used
  4. Check for "Received sensor data from Gazebo" message

"Could not find iris_runway.sdf"

Cause: GZ_SIM_RESOURCE_PATH not set correctly

Solution:

echo 'export GZ_SIM_RESOURCE_PATH=$HOME/simtofly_ws/ardupilot_gazebo/models:$HOME/simtofly_ws/ardupilot_gazebo/worlds:${GZ_SIM_RESOURCE_PATH}' >> ~/.bashrc
source ~/.bashrc

Close and reopen terminal.

Drone falls through ground in Gazebo

Cause: Physics not initialized properly or simulation running too fast

Solution:

  • Restart Gazebo
  • Wait 2-3 seconds after Gazebo launches before starting SITL
  • Check real-time factor is ~1.0 (not 10x or higher)
  • Reduce system load (close other applications)

"JSON sensor timeout" error in SITL

Cause: SITL can't receive data from Gazebo

Solution:

  1. Verify Gazebo is running first with drone model loaded
  2. Check terminal for errors in Gazebo window
  3. Restart both Gazebo and SITL in correct order:
  4. First: Gazebo (wait for full load)
  5. Second: SITL

Gazebo crashes on launch

Cause: GPU/graphics driver issues (common in VMs)

Solution:

  1. Update graphics drivers:

    sudo apt update
sudo apt upgrade -y

  2. Try software rendering:

    export LIBGL_ALWAYS_SOFTWARE=1
gz sim -v4 -r iris_runway.sdf

  3. For VMs: Enable 3D acceleration in VM settings

  4. Consider native Ubuntu for better GPU support

Additional Resources

Official Documentation:

  • Gazebo Harmonic: https://gazebosim.org/docs/harmonic
  • ArduPilot Gazebo Plugin: https://github.com/ArduPilot/ardupilot_gazebo
  • ArduPilot SITL with Gazebo: https://ardupilot.org/dev/docs/sitl-with-gazebo.html
  • Gazebo Tutorials: https://gazebosim.org/docs/harmonic/tutorials

Community:

  • ArduPilot Forums: https://discuss.ardupilot.org/
  • Gazebo Community: https://community.gazebosim.org/
  • ArduPilot Discord: https://ardupilot.org/discord

← Back: 1.4 MAVProxy Basics | Next: 1.6 First Autonomous Mission →
